Hot Plates Manufacturer,Supplier and Exporter in India

The top surface encloses an 800W heating element.

This general purpose hot plate consist of top surface of dia 20 cm (8) that is mounted on a steel body.

The temperature is controlled by an energy regulator.

Maximum surface temperature can go upto 350 °C.

Contact Science Lab for your Educational School Science Lab Equipments. We are best technical educational equipments manufacturers, technical educational equipments manufacturer, technical educational equipments supplier, technical educational instruments, technical educational instruments exporter, technical educational instruments manufacturer, vocational training lab instruments exporter


Heavy duty heating elements to work on 220V AC.
Hot plate is rectangular in shape.
Hot plate dia 20 cm. (8) to work on 220 V AC.
Body made out of mild steel sheet. Hot plate made of cast iron.
Temp. is controlled by a three heat rotary switch.
Rating: 1.2 kW, 1.6 kW
Size: 30 x 25 cm (12 x 10), 40 x 25 cm (16 x 10), 45 x 30 cm (18 x 12)

Contact Science Lab for your Educational School Science Lab Equipments. We are best technical educational equipments manufacturers, technical educational equipments manufacturer, technical educational equipments supplier, technical educational instruments, technical educational instruments exporter, technical educational instruments manufacturer, vocational training lab instruments exporter.

Maximum surface temp. Approx. 300º C, temp. is controlled by a three position rotary switch.

Science Lab Export Cast Iron Hotplate of diam. 20 cm mounted on steel body.

Works on 220 V AC/50 Hz.

Contact Science Lab for your Educational School Science Lab Equipments. We are best school lab equipment suppliers, lab equipment suppliers near me, laboratory equipment manufacturers in india, scientific equipment manufacturing company, educational equipments for science labs, educational lab equipment manufacturers in india.

The body is made of die-cast aluminum body and finished with a high-quality anti-corrosion coating.
The advanced hot plate has glass ceramic top plate that offers excellent chemical resistance against strong acids and bases.
The advanced hot plate is designed to provide reliable performance, dependable safety and precise control.
PID temperature technology controls heating process ensuring that set temperature is reached quickly and accuracy is enhanced.

Max Temp.: 380°C
Top Plate: Glass Ceramic
Input Rating: 110V AC / 60 Hz, 220V AC / 50 Hz
Rating: 1 kW

Contact Science Lab for your Educational School Science Lab Equipments. We are best educational lab equipments manufactruers, educational lab instruments manufacturer, educational laboratory glassware exporter, educational laboratory microscopes, educational laboratory suppliers, educational scienitific lab equipments.

Maximum temperature of top surface can go upto 350°C.
Temperature is controlled by a PID controller.

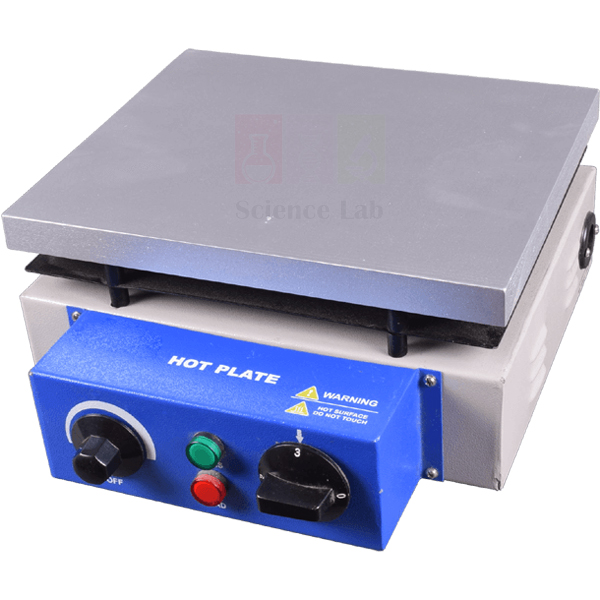

This heavy duty hot plate consist of rectangular, cast iron plate mounted on top of MS body.
Includes external temperature probe, support rods and clamps.
The top plate encloses a heavy duty heating element.
PID controller provides precise temperature regulation of external probe.
Rating: 1.2 kW, 1.6 kW
Size: 30 x 25 cm (12 x 10”), 40 x 25 cm (16 x 10”), 45 x 30 cm (18 x 12”)

Contact Science Lab for your Educational School Science Lab Equipments. We are best engineering educational equipments, high school science lab equipment manufacturers, lab equipment exporters, lab equipments manufactruers, lab instruments manufactruers, mathematics lab equipments manufacturers.

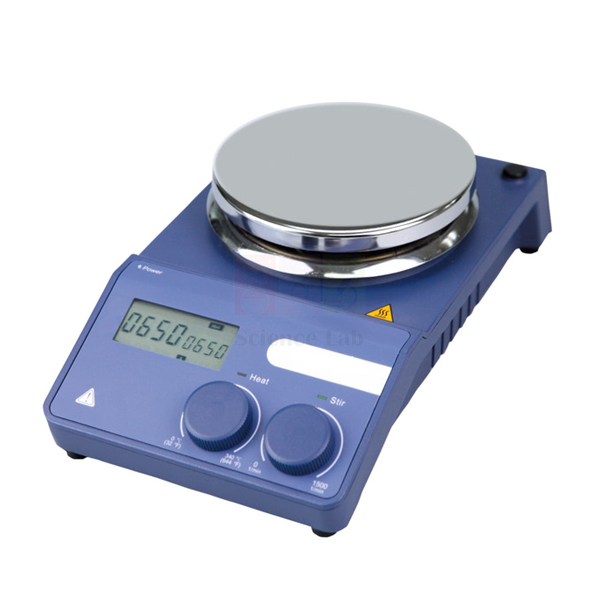

The Hotplate and Magnetic stirrer is made of stainless steel with a ceramic to coating resist corrosion.
It also has a separated safety circuit which will automatically stop heating when temperature reaches 350 degrees.
The Hotplate Stirrer features an enclosed assembly with protection class IP42 and a DC brushless motor which guarantees long product life.
The variable speed motor is designed to stay at a constant speed even during change in load.
High magnetic adhesion ensures that the stirrer bar stays stable at the bottom of the container.

Technical Specification :
Dimension of work plate [mm]: 135mm
Speed range [rpm]: 0-1500
Work plate material: Stainless steel with ceramic coated
Speed display: Scale
Motor type: DC brushless motor
Power [W]: 530
Temperature display: Scale
Frequency [Hz]: 50/60
Stirring positions: 1
Max. stirring quantity[H2O], L: 20
Heating output [W]: 500
Motor rating input [W]: 18
Heating temperature range [°C]: RT-340
Motor rating output [W]: 10
Safety temperature [°C]: 350
Protection class according to DIN EN60529: IP42
Max. magnetic bar(L x Ø) [mm]: 80
Dimension [W x D x H] mm: 160×280×85
Permissible ambient temperature [?]: May-40
Weight [kg]: 2.8
Permissible relative humidity: 80%

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific lab equipments manufacturers, scientific laboratory equipments manufacturer, technical educational equipment manufacturer, technical lab equipments manufacturers, tvet lab equipment manufacturers, vocational training lab equipments exporter.

This Hot plate stirrer heats to 340° and is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.
The hotplate casing is made from moulded stainless steel.
The hotplate is ceramic coated to resist corrosion and increase heating consistency.
PID temperature technology controls heating process ensuring that target temperature is reached quickly and control and accuracy is enhanced.
This hotplate model is suitable for external temperature sensor which displays and controls the actual liquid temperature.

Technical Specifications :
Ceramic coated
Hot warning light, remains active even when unplugged
Units can be stored on side
Integral fitting for retort rod
Stirring Capacity: 20 litres
Dimensions: 155(w) x 270(d) x 55(h) mm
Net weight: 2.3kg
Electrical supply: 240V
Design to allow standard retort base to slide underneath
Plate Dimensions: 135 x 135 mm
Stirrer Speed: 30 to 1500 rpm
Max. Plate Temperature: +340°C
Heater Power: 530W
Socket to fit temperature controller
Speed accuracy: +/- 1%
Digital display
Hotplate Temperature: up to 340°C
Temp setting accuracy: +/- 1C
Speed accuracy: +/- 1%
Heating:  530W
